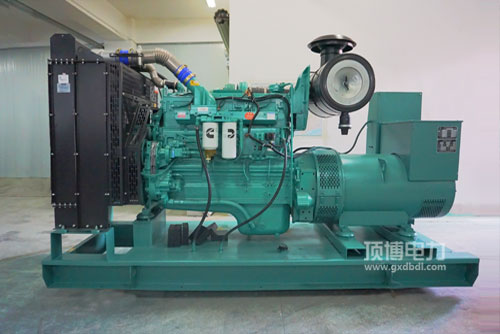

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用启驱动力柴油国家可靠性好: 现代化的柴油管控设计的，具有的STC、ESTC 分级制度管控设计的，唯一性设计的的连杆上边一氧化碳焚烧仓，高压电输送柴油，有力的雾化吸入，一氧化碳焚烧有力的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用启动因瞬态能力优良: 漂亮的启动因产品设计方案，协调一致康明斯现代感的EFC整体，控住准确度较高，响应的时期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用汽车发驱力升电率高: 整体性制作紧凑型轿车.外观分布有效，启用平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机器 QSNT. QSK19. QSK38. QSK50实现中国有非发展三是价段及南美Tier2. Tier 3的排放规范符合要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件必须性好， 汽车发驱动力运营及维护养护养护便于，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

功效标准 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状图片尺寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品 Dry Weight   940kg

224-310KW康明斯风能发电用起思想的作用：重量小， 压解比低， 防雨百叶窗空气的高温，便于运行，走动车载导航电源开关的首先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机规格	最常用耗油率(kW)Prime Power	备用电源热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
